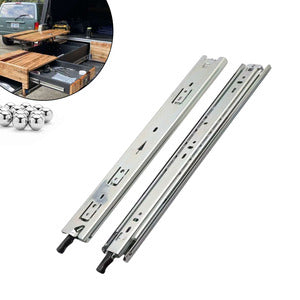

The main specifications of heavy duty drawer slides, which are critical components in industrial and commercial storage systems, are as follows:
51mm wide heavy duty drawer slides
The width of this drawer slide is 51mm, with a material thickness of 1.5mm (triple-layer structure). Its installation clearance is 12.7mm, and the load-bearing capacity can reach 150 lbs. Both locking and non-locking versions are available, making it suitable for scenarios requiring medium load and precise space management, such as office furniture and light industrial cabinets where structural stability and dimensional accuracy are key.
53mm wide heavy duty drawer slides
Compared to the 51mm model, the width is increased to 53mm, with a material thickness of 2.0mm (all-steel thickened structure) and an installation clearance of 19mm. Due to the thicker material, its load-bearing capacity reaches 250 lbs. It is available in locking and non-locking options, ideal for environments needing enhanced durability without strict size constraints, such as workshop tool chests and commercial storage units.
76mm wide heavy duty drawer slides
As the widest heavy-duty slide rail, its width reaches 76mm, with a material thickness of 2.5mm (heavy-gauge steel structure) and an installation clearance of 19mm. The load-bearing capacity is also 250 lbs, with locking and non-locking variants. It is designed for heavy-duty industrial use, including machinery enclosures and warehouse storage systems where extreme weight tolerance and structural robustness are paramount.
Specifications, characteristics and selection
Heavy duty drawer slides of different specifications each have distinct characteristics tailored to specific application scenarios. The 51mm wide drawer slide, with its balanced 1.5mm triple-layer thickness and 12.7mm installation clearance, is ideal for medium-load applications requiring precise space management—such as office furniture and light industrial cabinets where both structural integrity and dimensional accuracy are critical. The 53mm variant, featuring 2.0mm thickened steel construction and 19mm clearance, excels in environments needing enhanced durability without strict space constraints, making it suitable for workshop tool chests and commercial storage units. Meanwhile, the 76mm wide slide rail, boasting 2.5mm heavy-gauge steel and identical 19mm clearance, delivers maximum load capacity for heavy-duty industrial use, including machinery enclosures and warehouse storage systems where extreme weight tolerance is paramount.
In conclusion
When selecting heavy duty drawer slides, a systematic evaluation of operational requirements is essential. For high-frequency access scenarios such as retail display cabinets or medical equipment, prioritize slides with smooth ball-bearing mechanisms and ergonomic locking systems to ensure effortless operation and secure positioning. In heavy-load environments like manufacturing facilities or automotive workshops, focus on models with reinforced sidewalls and anti-corrosion coatings to withstand constant stress and harsh conditions. Additionally, environmental factors must be considered: humid settings require galvanized or stainless-steel components, while temperature-fluctuating areas demand thermal-resistant materials. Compatibility with existing cabinetry dimensions and mounting configurations should also be verified to ensure seamless integration and optimal performance over the product lifecycle.
Material: Cold rolled steel with optional zinc plating or powder coating for enhanced corrosion resistance
Plate thickness: Outer rail-2.0mm, Middle rail-2.0mm, Inner rail-2.0mm (standard configuration for 53mm series)
Scope of application: Cabinet warehouse cabinets, financial equipment, industrial drawers, automotive tool storage, medical instrument cabinets, and heavy-duty retail display units
By taking all these aspects into account comprehensively, one can make an informed decision to choose the most appropriate heavy duty drawer slides that not only meet the functional requirements but also ensure long-term reliability and optimal performance in the specific application scenario. Whether it's for cabinet warehouse cabinets, financial equipment, industrial drawers, or other relevant fields, a careful evaluation of width, material thickness, installation clearance, load-bearing capacity, locking features, as well as material quality and wear resistance will lead to a successful selection of heavy duty drawer slides.
