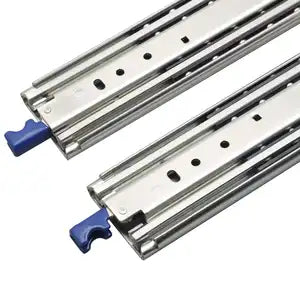

Heavy-duty drawer slides are defined by their high load capacity, usually ranging from 80kg to 120kg, thick cold-rolled steel construction, and reinforced structural design. The integrated locking system is not an add-on accessory but a precision-engineered core function that differentiates industrial-grade slides from regular furniture slides. Many online store shoppers confuse basic soft-close slides with locking heavy-duty slides, leading to wrong purchases for mobile workshops, vehicle storage, and industrial cabinet projects. Learning exactly how these locks work will help you select, install, and maintain your drawer hardware for long-term durability and safety.
1. Core Components of Heavy-Duty Drawer Slide Lock Mechanisms
To understand how the lock functions, you first need to know the key parts that make up a heavy-duty locking drawer slide system. Every functional lock relies on coordinated movement between structural and mechanical components, with zero compromise on load resistance. The core components include the outer rail, inner rail, rolling ball bearing system, lock pin, spring-loaded latch, manual release button or lever, and fixed locking grooves.
The outer rail mounts firmly on the cabinet or storage frame, acting as the fixed base of the entire sliding system. The inner rail attaches directly to the drawer body and moves in tandem with the drawer during opening and closing. High-precision steel ball bearings between the two rails ensure smooth, frictionless movement even under maximum load, avoiding jitters that could trigger false locking or unlocking. The spring-loaded lock latch and precision lock pin are the heart of the locking system. These small but sturdy metal parts are responsible for automatic engagement and secure positioning, while the release lever or button serves as the manual control switch for users.
Unlike lightweight furniture slides with plastic locking parts, heavy-duty slide locks adopt full metal construction. This design eliminates plastic fatigue, breakage, and deformation under heavy weight or continuous vibration, ensuring stable locking performance for years of industrial use. The fixed locking grooves are precisely cut on the slide rails, creating exact stop points for fully closed and fully extended positions, which is the foundation of dual-position locking functionality.
2: Step-by-Step Working Principle
Most premium heavy-duty locking drawer slides feature a**dual-position auto-locking system**, which locks the drawer securely when fully closed and fully extended. This is the most widely used mechanism for industrial, automotive, and RV storage applications, and its working process is simple, reliable, and user-friendly.
When you close a heavy loaded drawer completely, the inner rail slides back to the original position along the outer rail. Once the drawer reaches the fully closed state, the spring-loaded lock pin automatically pops into the precision locking groove on the outer rail. This instant engagement locks the drawer in place tightly, eliminating gaps and loose movement. Even when the storage cabinet or vehicle shakes violently during transportation or operation, the locked drawer will not creep open, shift, or bounce. This solves the common pain point of heavy drawers drifting open due to gravity and vibration.
To open the locked drawer, you need to perform a deliberate manual operation. Simply pulling the drawer handle will not overcome the lock resistance. You must press the built-in release button or push down the control lever on the slide rail. This action lifts the lock pin out of the fixed groove and compresses the internal spring, releasing the locking state. Once unlocked, you can smoothly pull the drawer open to full extension.
The locking mechanism works again when the drawer is fully extended. When the inner rail reaches the maximum opening distance, the lock pin engages with the second locking groove at the extended end. This locks the open drawer firmly in place, preventing accidental retraction during item retrieval, tool organization, or maintenance work. This function is extremely valuable for workshop and mobile tool drawers, as it provides a stable operating platform without the risk of sudden drawer closure.
After finishing use, press the release button again to disengage the open-position lock, and push the drawer back to the closed position. The lock will auto-engage once more to complete a full working cycle. The entire mechanism relies on pure mechanical spring and groove cooperation, no electricity or complex control systems, ensuring high stability and low failure rates in harsh working environments.
3. Three Main Types of Locking Mechanisms for Heavy Drawer Slides
Not all heavy drawer slide locks work the same way. Manufacturers design different locking modes for diverse application scenarios, covering safety locking, operational convenience, and customized use needs. Understanding these three main types will help you pick the perfect slides for your Shopify store customers’ projects.
4. Dual Lock (Lock-In & Lock-Out) Mechanism
This is the most popular and versatile locking type for heavy-duty slides. It supports automatic locking at both fully closed (lock-in) and fully extended (lock-out) positions. The dual-lock design delivers double safety protection: it prevents drawer opening during equipment movement and avoids accidental retraction during use. Ideal for toolboxes, truck storage drawers, RV cabinets, and industrial workbenches, this mechanism is the top choice for commercial and mobile storage systems.
### 2. Single-Side Lock Mechanism
Single-side locking slides install a lock structure on only one rail while keeping the other rail smooth and lock-free. This customized design balances locking safety and sliding flexibility. It is widely used for customized industrial drawers, large pull-out trays, and asymmetric storage cabinets. The single lock still provides stable anti-shake and anti-slip effects, while reducing sliding resistance for frequent daily operation.
### 3. Key Lock Security Mechanism
For scenarios requiring privacy and anti-theft functions, heavy-duty slides adopt a key lock matching the lock bar and actuator system. Different from manual button locks, this mechanism requires a key to unlock the drawer, providing permanent anti-opening protection. It is commonly used for safety storage drawers, confidential tool cabinets, and commercial equipment storage that needs strict access control.
## Key Benefits of Locking Heavy-Duty Drawer Slides
The locking system is the core value of premium heavy-duty drawer slides, bringing irreplaceable advantages compared to ordinary slides. First, it delivers superior safety protection. For mobile storage devices such as truck tool drawers and RV cabinets, vibration and jolts during travel easily cause heavy drawers to open suddenly, leading to tool falling, hardware damage, and even safety hazards. The auto-lock mechanism completely avoids this problem by fixing the drawer in place steadily.
Second, it extends hardware service life. Unlocked heavy drawers generate continuous impact and friction on slide rails during movement. Long-term loose shaking causes rail deformation, ball bearing wear, and loose assembly. The locking structure eliminates idle movement, reduces mechanical wear, and greatly improves the overall durability of the drawer slide system.
Third, it improves work efficiency and user experience. The lock-out function keeps drawers fully open and stable, allowing users to organize heavy tools, take parts, and perform maintenance work with both hands free without worrying about sudden drawer closure. The simple one-button release operation is ergonomic, requiring no excessive force or complicated steps.
Finally, it enhances storage tidiness. Locked drawers keep internal items stable and organized, preventing messy displacement caused by drawer shaking. This is particularly important for precision tools, mechanical parts, and heavy hardware storage.
## Common Applications for Locking Heavy-Duty Drawer Slides
Locking heavy drawer slides are purpose-built for high-load, high-vibration, and high-safety demand scenarios, far beyond ordinary home furniture use. The most typical applications include industrial workshop cabinets, heavy-duty toolboxes, truck and trailer storage drawers, RV and yacht storage systems, mechanical equipment pull-out trays, and commercial exhibition cabinets.
In industrial environments, these slides support long-term high-load operation and frequent opening and closing, adapting to harsh conditions such as dust and vibration. In mobile transportation scenarios, the anti-lock creep function ensures storage safety during vehicle movement. For commercial equipment, the stable locking performance guarantees equipment integrity and operational safety.
## FAQs About Heavy-Duty Drawer Slide Locks
### Q1: Are locking drawer slides hard to install?
No. Locking heavy-duty drawer slides adopt standard side-mount or under-mount installation structures, consistent with ordinary heavy slides. The locking mechanism is pre-installed inside the rails, requiring no additional assembly. Users only need to fix the inner and outer rails on the drawer and cabinet to complete installation.
### Q2: Will the lock affect the smoothness of sliding?
Qualified heavy-duty locking slides have precisely calibrated spring and groove structures. The lock only engages at the fully open and fully closed stop points, with no locking interference during the sliding process. The high-precision ball bearing system ensures consistently smooth sliding without jamming or stuttering.
### Q3: Can locking slides support maximum load capacity while locked?
Yes. The full metal locking structure is tested to match the slide’s maximum load capacity (up to 120kg). It can firmly fix fully loaded drawers without deformation or failure, meeting industrial heavy-load safety standards.
## Final Thoughts
The lock on heavy-duty drawer slides works through a precision mechanical coordination system of spring latches, lock pins, and positioning grooves, realizing automatic dual-position locking and manual flexible release. This ingenious mechanical design solves the safety and stability pain points of heavy-load drawer storage, especially for mobile and industrial scenarios. Unlike ordinary slides that only support simple sliding, locking heavy-duty slides integrate safety, durability, and practicality, making them essential hardware for high-quality industrial and commercial storage systems.
