When shopping for heavy-duty drawer slides, most buyers focus on load capacity, material, and brand—but stroke length (extension length) is just as critical. It determines how far your drawer can open, how easy it is to reach stored items, and whether the slide fits your cabinet or tool chest. Choosing the wrong extension length leads to wasted space, poor accessibility, and even premature wear on your hardware.
In this comprehensive guide, we break down everything you need to know about heavy-duty drawer slide stroke length: standard sizes by width, full-extension vs. partial-extension, real-world examples, installation tips, and how to pick the right extension for your project. Whether you’re a DIY homeowner, cabinet maker, contractor, or industrial designer, this guide will help you make a confident, data-driven choice.
What Is Stroke Length (Extension Length) for Heavy-Duty Drawer Slides?
First, let’s clarify the terms:
Stroke length (also called extension length) is the total distance a drawer slide can extend outward from the cabinet.
For telescopic heavy-duty slides (the most common type for industrial and heavy-use applications), stroke length directly correlates to the closed length of the slide.
Unlike light-duty slides that only open partially, heavy-duty slides are built for full extension—meaning they can extend to nearly twice their closed length. This design is non-negotiable for workshops, RVs, kitchens, garages, and industrial storage where every inch of space matters.
The stroke length of heavy-duty drawer slides is not random; it is standardized based on the slide’s width and closed length. Wider slides support heavier loads and longer extensions, making them suitable for heavy tools, equipment, and bulk storage.
Standard Width Series & Corresponding Stroke Length
Heavy-duty drawer slides come in three industry-standard width categories, each engineered for specific load and extension needs. Below is the breakdown you’ll find across reputable manufacturers:
1. 51mm Width Heavy-Duty Drawer Slides
The 51mm (2-inch) width is the entry-level heavy-duty option, ideal for residential and light commercial use. It balances strength and compactness, supporting moderate loads while delivering reliable full extension.
Typical closed lengths: 10” to 40”
Full extension stroke length: 2x closed length
Best for: Kitchen cabinets, wardrobe drawers, office storage, and light tool chests
2. 53mm Width Heavy-Duty Drawer Slides
Slightly wider than 51mm, the 53mm slide boosts stability and load capacity without increasing installation space. It’s the most popular choice for multi-purpose heavy-duty projects.
Typical closed lengths: 12” to 40”
Full extension stroke length: 2x closed length
Best for: Garage storage, workshop cabinets, RV drawers, and medium-duty tool boxes
3. 76mm Width Heavy-Duty Drawer Slides
The 76mm (3-inch) width is the industrial-grade workhorse. Built with thickened steel and reinforced ball bearings, it handles extreme weights and full extension in demanding environments.
Typical closed lengths: 14” to 60” (and custom sizes up to 80”)
Full extension stroke length: 2x closed length
Best for: Industrial tool cabinets, heavy equipment storage, truck boxes, commercial kitchens, and manufacturing workstations
The golden rule across all series: heavy-duty full-extension slides double their closed length when fully extended. This 2:1 ratio is the industry standard for reliable, balanced operation.

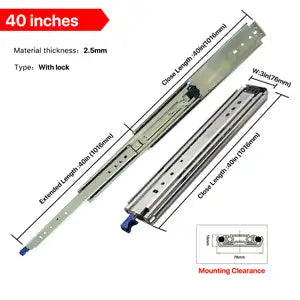

Real-World Example: 76mm Width × 40” Length Slide
To make this tangible, let’s use the most in-demand industrial size: a 76mm width, 40-inch closed length heavy-duty drawer slide.
Closed length: 40 inches
Fully extended stroke length: 80 inches
This 100% full-extension design is transformative for usability. When installed, the drawer pulls out completely, exposing the entire interior of the cabinet. No more reaching blindly to the back, no more wasted storage space, and no more rummaging through piles to find what you need.
For industrial users, this means instant access to heavy tools, spare parts, and safety equipment. For homeowners, it turns deep kitchen or garage drawers into fully usable storage. The 76mm slide’s stroke length isn’t just a number—it’s a productivity upgrade.
Why Stroke Length Is Make-or-Break for Heavy-Duty Applications
You might wonder: Why not just buy any long slide? The answer lies in functionality, durability, and safety. Here’s why stroke length matters:
1. Full Access to Every Inch of Storage
Partial-extension slides only open 60–70% of the cabinet depth. The back 30% becomes a “dead zone” where items get lost or forgotten. Full-extension heavy-duty slides eliminate dead zones, maximizing your storage ROI.
2. Smooth, Stable Operation Under Load
Wider slides (like 76mm) with matched stroke length distribute weight evenly across the ball-bearing track. This prevents sagging, sticking, or bending—even when the drawer is fully loaded and fully extended.
3. Longer Lifespan & Less Maintenance
Slides designed with proper stroke length reduce stress on hinges, bearings, and mounting points. A well-sized slide can last 50,000+ open/close cycles without lubrication or repairs.
4. Safety for Heavy Loads
In industrial settings, a slide that fails mid-extension can cause injury or equipment damage. Standardized stroke length ensures the slide locks securely in place, even under full load.
Full Extension vs. Partial Extension: Which Do You Need?
Not all projects require 100% extension—but most heavy-duty setups do. Here’s how to choose:
