Heavy drawer slides, also known as heavy-duty telescopic slides, are essential components in many industrial and commercial applications. From heavy machinery and equipment to storage systems and vehicle interiors, these sturdy and durable rails help to move heavy objects smoothly and easily. But a common question is, "What is the size of heavy-duty drawer slides?" Finding the appropriate size and specifications for these slides is crucial to ensuring optimal performance and safety in various applications. These slides produced by manufacturers come in various sizes and extensions to meet different needs. However, before choosing the appropriate size for your specific application, certain factors must be considered.

 Load capacity: One of the most critical factors determining the size of the slide rail is the expected load capacity. Compared to regular drawer slides, heavy-duty drawer slides typically have a higher rated load. According to the design and construction of the slide rail, its load-bearing capacity ranges from a few hundred pounds to several thousand pounds. It is crucial to evaluate the maximum weight that the slide can withstand and choose a size that can safely accommodate that weight.

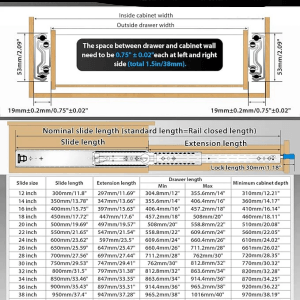

 Installation space: Another factor to consider is the available installation space. Heavy drawer slides require sufficient space for installation, expansion, and contraction. Accurately measuring the length and width of the installation space is the key to ensuring the appropriate installation of the slide rail. Ideally, the total length of the slide rail should be slightly shorter than the installation space for easy installation and movement.

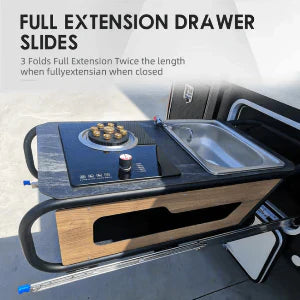

 Extension length: The extension length refers to how far the slide can extend from the closed position. Heavy drawer slides offer various extension lengths, such as fully extended slides, partially extended slides, and over travel slides. The fully extended slide allows drawers or components to extend completely outside the cabinet or casing, providing convenient access to the entire content. On the contrary, partial extension slides only allow partial extension of drawers or components. The overtravel slide provides further extension beyond the full extension length. Determining the required extension length is crucial for achieving the required movement and accessibility.


In summary, heavy-duty drawer slides come in various sizes and extensions to meet different application requirements. When selecting the appropriate slide size, it is crucial to consider factors such as load capacity, available installation space, extension length, and the need for locking mechanisms. By understanding these factors and choosing the appropriate size and specifications, you can ensure smooth and efficient operation while maintaining safety and reliability in heavy-duty applications.
